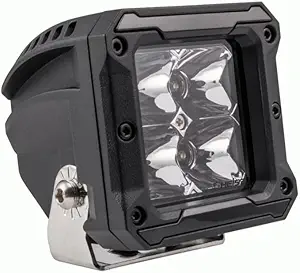

3 Inch Green LED Hunting Cube Light

Specs
Input Voltage: 10-30V DC
Wattage: 72W (24-3W LEDs)
Raw Lumens: 5400
Color Temperature: 6000K
Beam Pattern: combo – flood (90°)/spot (8°)
Construction
Die-cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward: 13.50″
Brackets turned outward: 14.75″
Mounting Bolt Drill: .25″
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: -40°C to +60°C
Current Consumption: 3.7amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity

Specs
Input Voltage: 10-30V DC
Wattage: 180 W (60-3W LEDs)
Raw Lumens: 14400
LUX at 10M: 625
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°) / Spot(8°)
Construction
Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 31″
Brackets Turned Outward – 33.5″
Mounting Bolt Drill – 25″
Height of Light Bar Itself: 3″
Depth of Light Bar Itself: 3.5″
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40° C to +60° C
Current Consumption: 9.5 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity

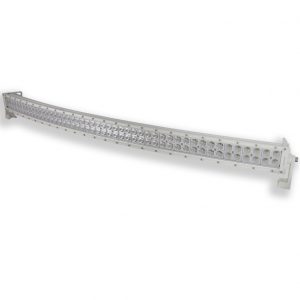

Specs
Input Voltage: 10-30V DC
Wattage: 240 W (80-3W LEDs)
Raw Lumens: 19200
LUX at 10M: 780
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°) / Spot(8°)
Construction
Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 41″
Brackets Turned Outward – 43.5″
Mounting Bolt Drill – 25″
Height of Light Bar Itself: 3″
Depth of Light Bar Itself: 3.5″
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40° C to +60° C
Current Consumption: 12 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity

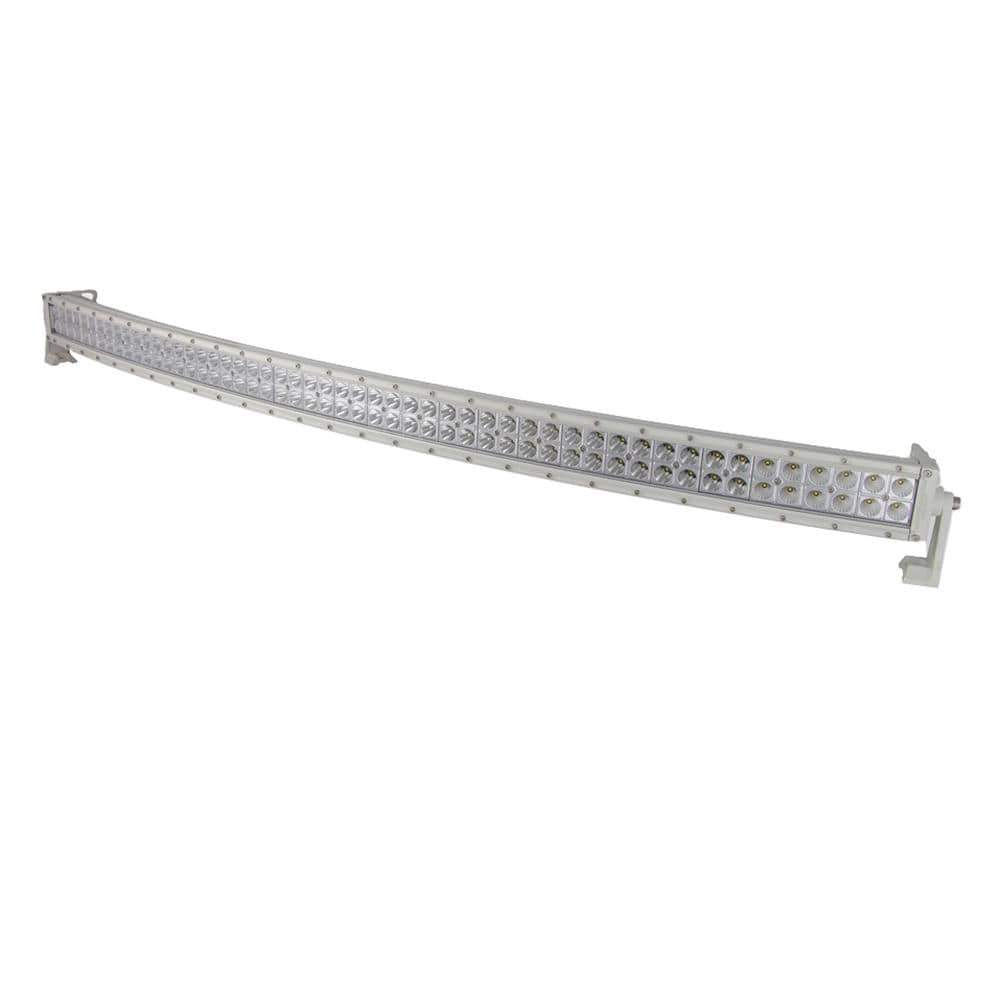

Specs
Input Voltage: 10-30V DC
Wattage: 300 W
(100-3W CREE LEDs)
Raw Lumens: 24960
LUX at 10M: 1050
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 52.75 inches
Brackets Turned Outward – 55.25 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 16 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity

New design for clean and easy installations
6000 Lumens
25 Watts per bulb
Voltage: 9-32V DC
Compact radial heatsink for better heat dissipation – less depth of space and easy installs
Voltage and current monitoring circuits are inside the compact radial heatsink housing and protected from the elements
6500K color spectrum with 3000K (golden yellow) and 8000K (light blue tint) films
IP67 rated
Sold as a pair
Keep your original factory bulbs so that you can replace them for use on public roads. Keep the box that the new bulbs came in to store the bulbs and be sure to handle them with care when removing and re-installing

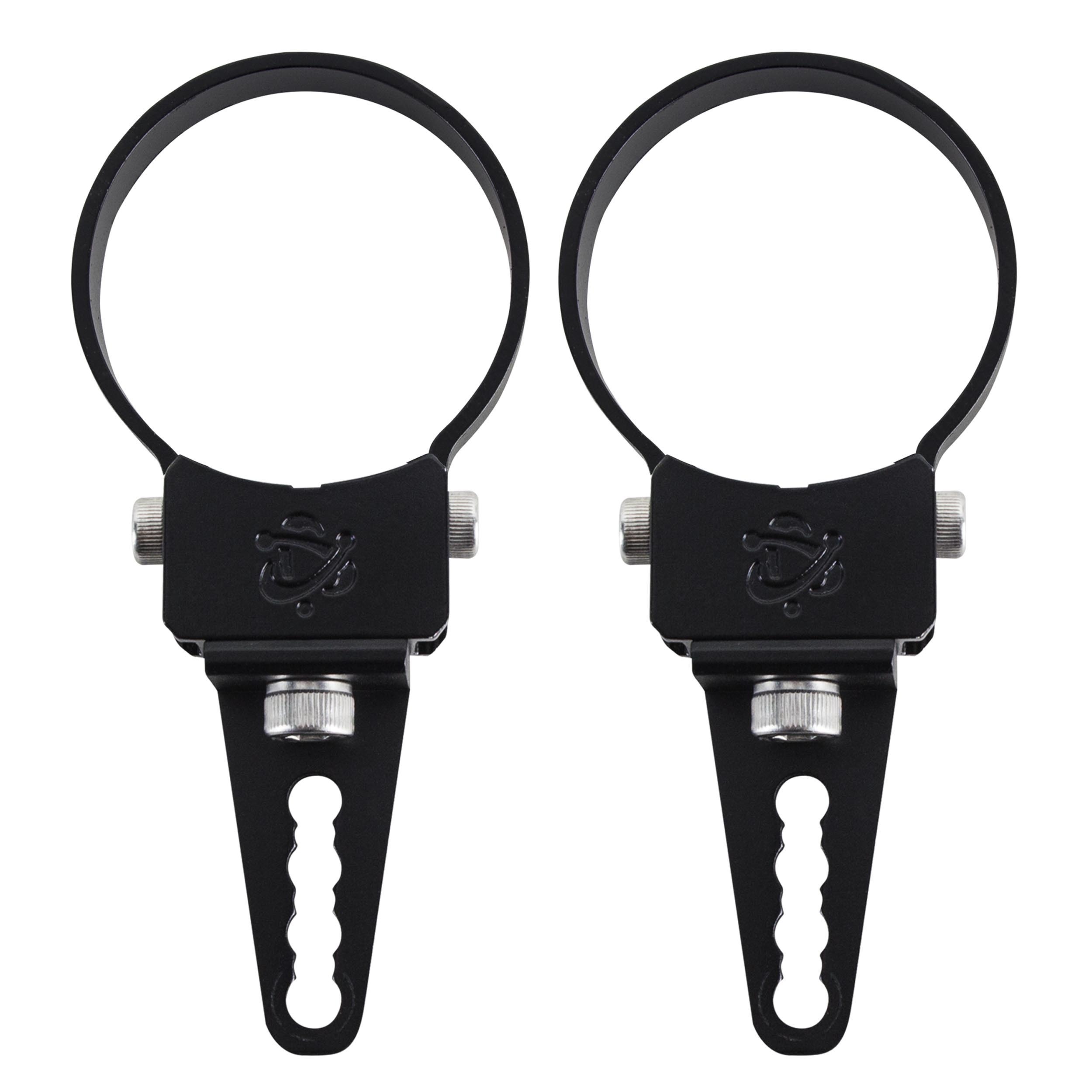

Black plated aluminum to be attractive and strong
Rubber gasket included to protect the roll bar
Use with Heise Light Bars – Driving and Work lights
Allen keys included
2-pack

Black plated aluminum to be attractive and strong
Rubber gasket included to protect the roll bar
Use with Heise Light Bars – Driving – Work lights
Allen keys included
2-pack

IR remote
Connect up to three HE-5MRGB-1 lights to the controller
Sensitivity adjustment

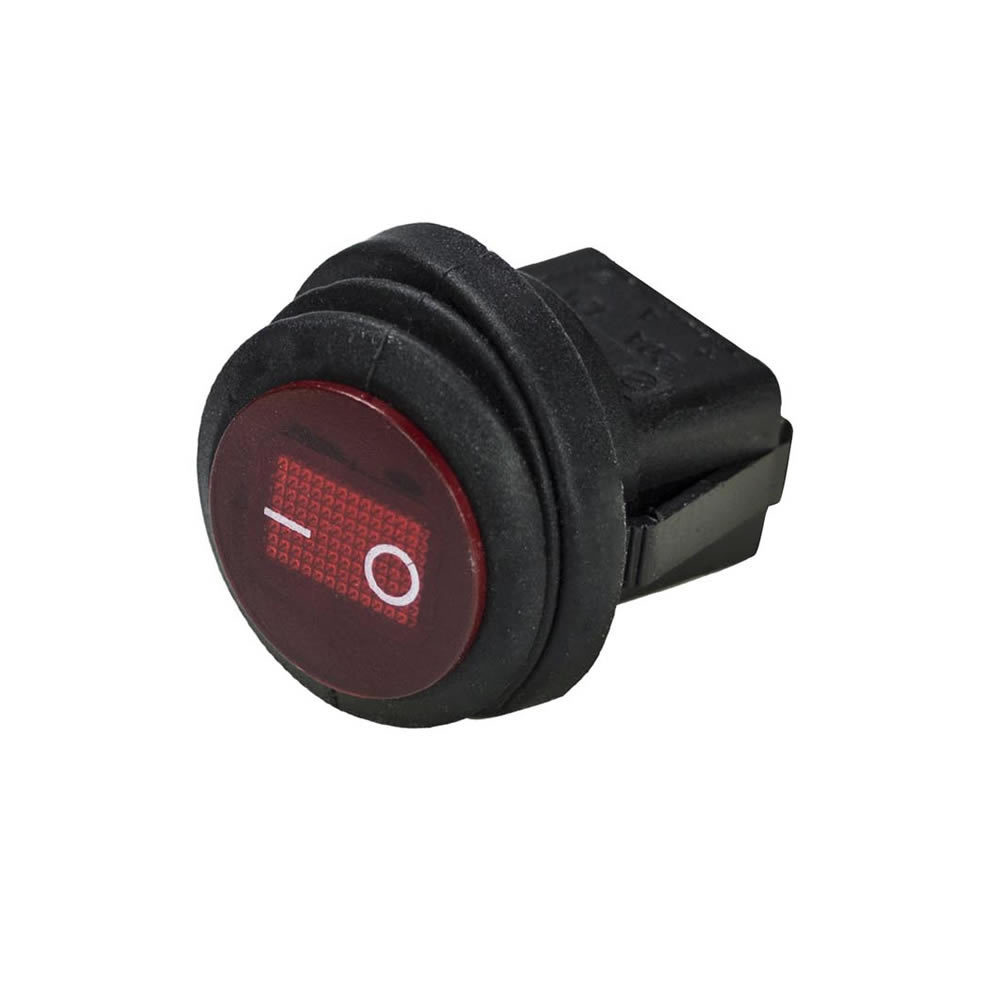

Same switch as used in the Heise relay harnesses
20 amp
Rubber cover helps protect switch from dust and water intrusion
Red
5-pack

9 ft lead for lightbar connector(s)

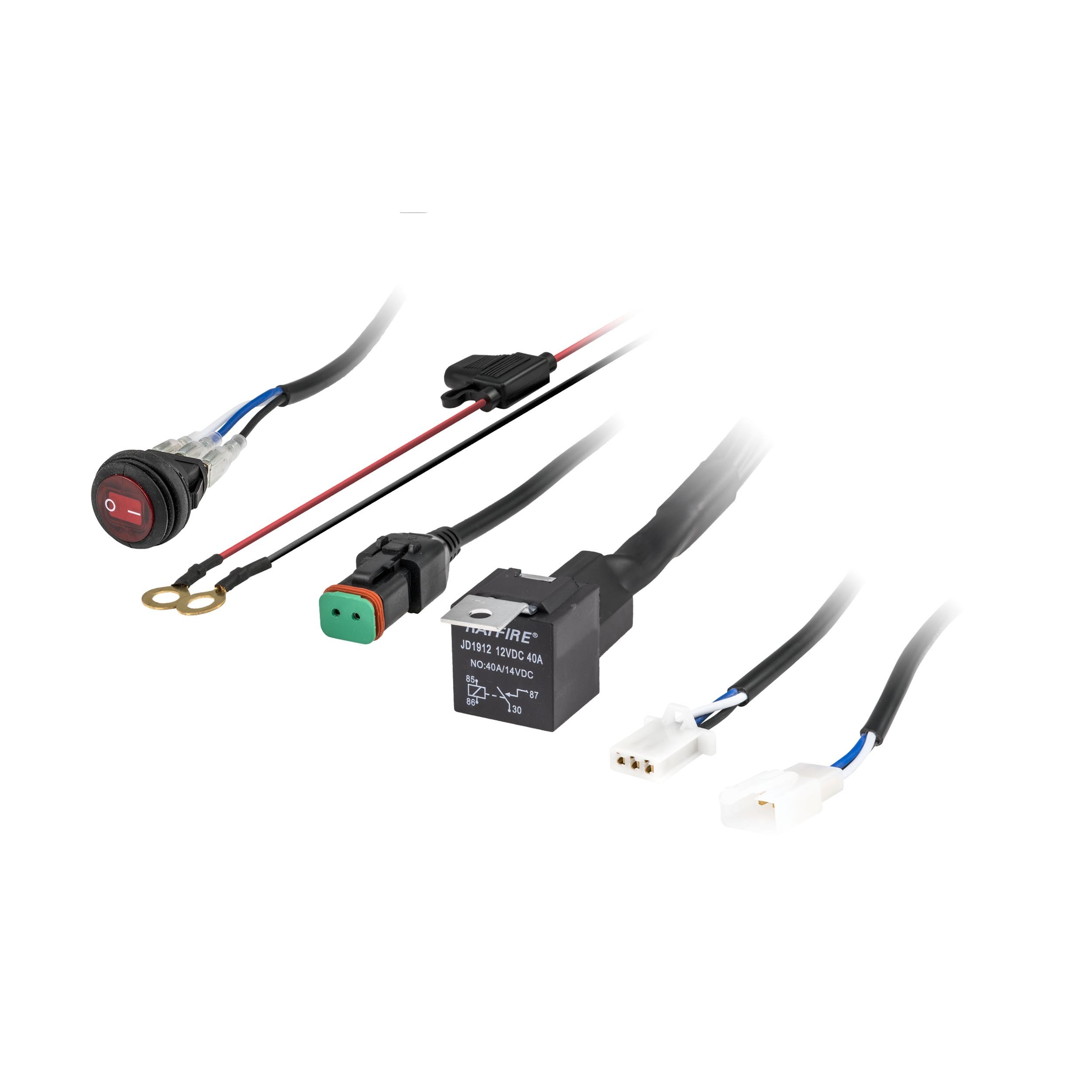

Universal Wiring Harness and Switch Kit (for 1 Lamp – DT connector)
Universal plug-n-play wiring harness with on-off rocker switch
12V DC relay
30A fuse
Use with one Heise light – 150 watts or less

9 ft lead for light bar connector(s)

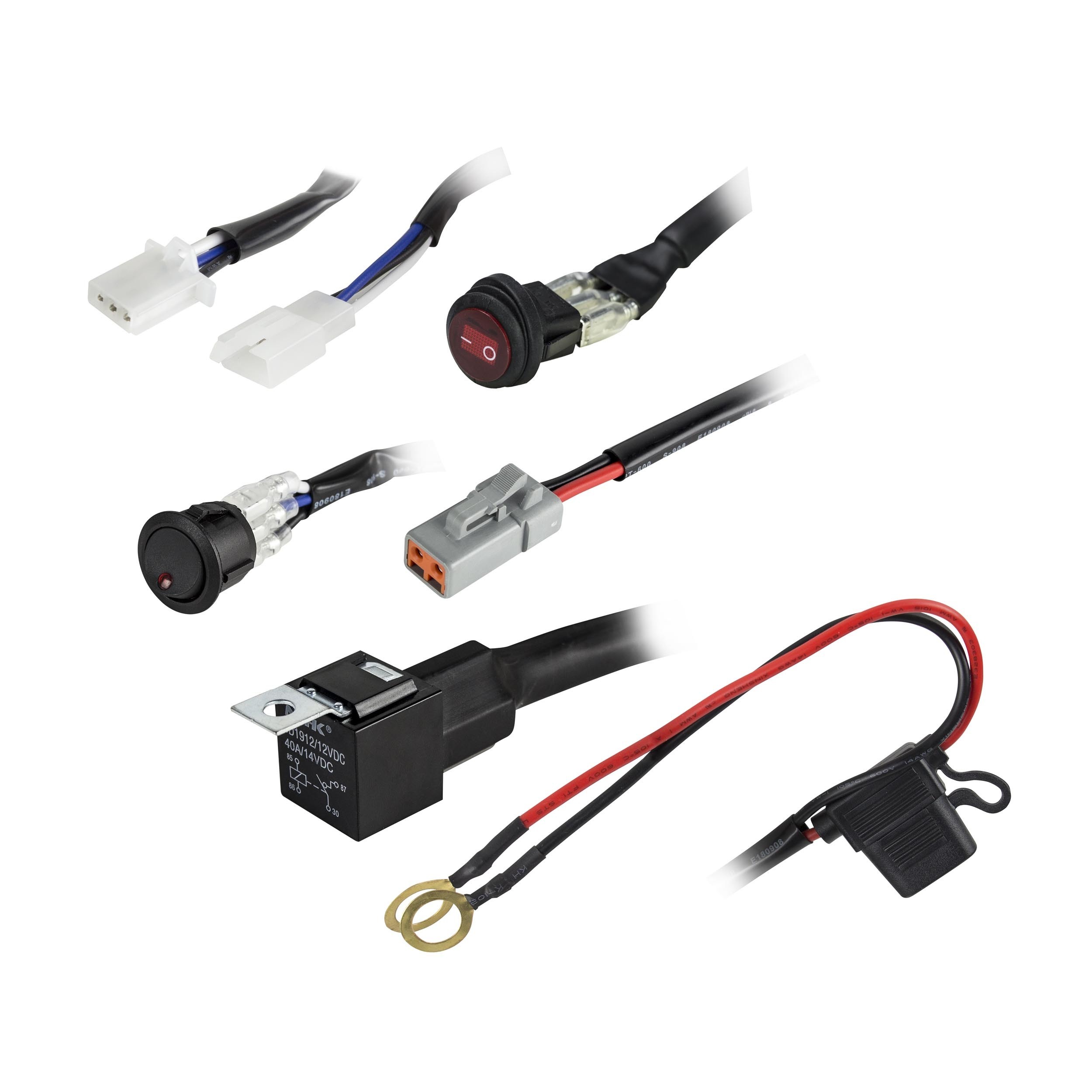

Universal wiring harness and switch kit (for 1 lamp, ATP connector)
Universal plug-n-play wiring harness with on/off rocker switch
12V DC relay
30A fuse
Use with 1 Heise light 160 watts or more
