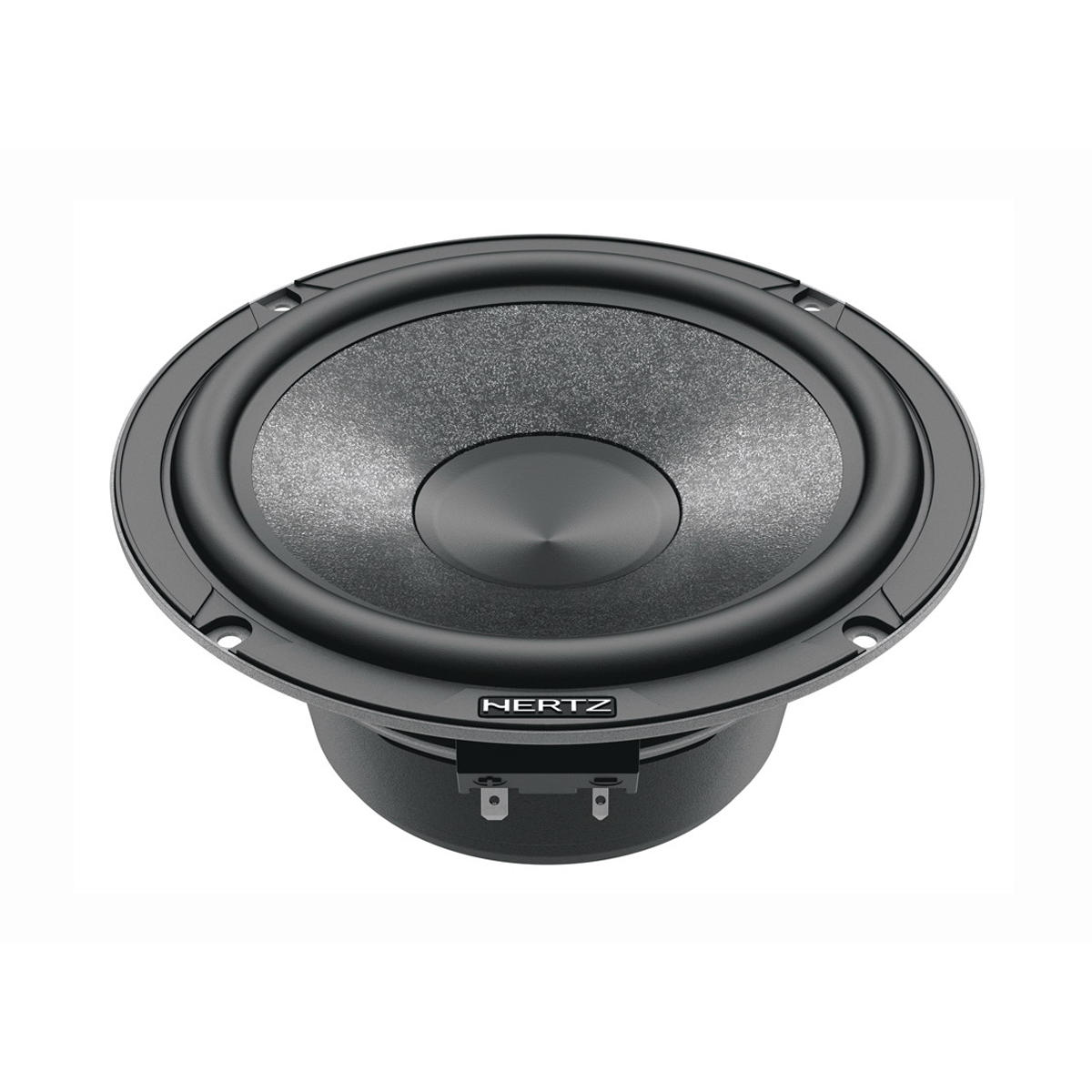

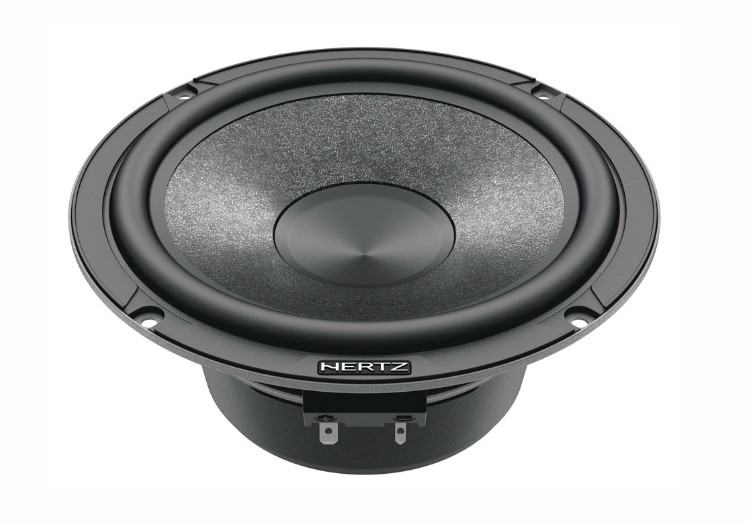

C165

Component Woofer
Size mm (in.) 165 (6.5)
Power Handling – Continuous W 70
Power Handling – Peak W 210
Impedance Ohm 4
Voice Coil Ø 25 (1)
Frequency Response Hz 55 ÷ 7k
Magnet size D x d x h mm (in.) 85 x 32 x 15 (3.35 x 1.26 x 0.59)
Weight of one speaker kg (lb.) 0,96 (2.12)
Magnet High density flux ferrite
Cone Semi-pressed paper+ Mica
Xmech mm (in.) 4,9 (0.19)

CALL FOR PRICE

SKU CX 690-1-1-1

Description

Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customisation of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity. The result is an excellent balance between lightness and damping, essential for a powerful and controlled emission. The oversized ferrite magnet provides excellent control even at higher excursions.6
