Description

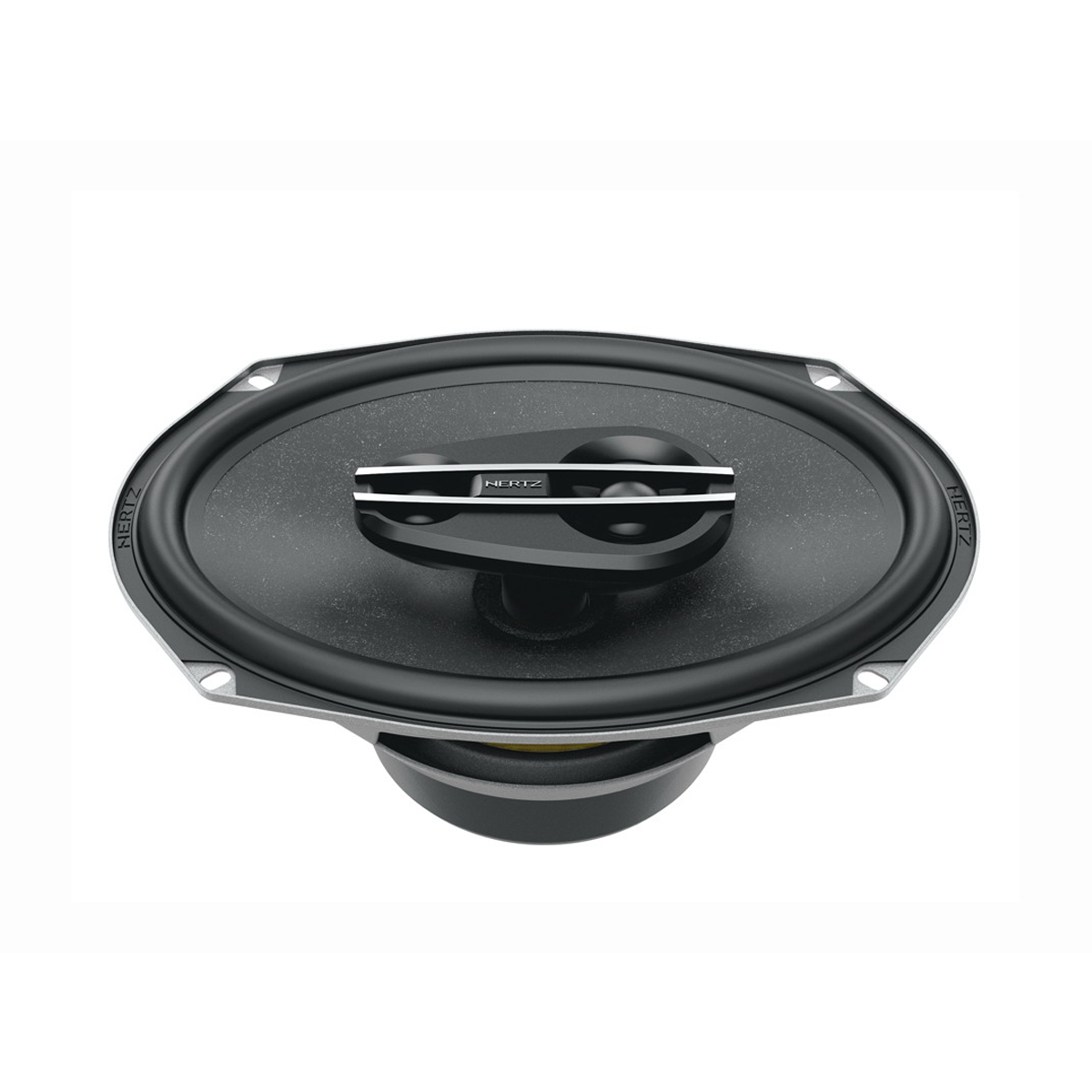

The three-way elliptical coax CX 690 featuring a 6×9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.
CX 690
Component Coaxials
Size mm (in.) (6 x 9)
Power Handling – Continuous W 100
Power Handling – Peak W 300
Impedance Ohm 4
Tweeter diaphragm mm (in.) 40 (1.58)
Woofer Voice Coil Ø mm (in.) 30 (1.2)
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Frequency Response Hz 40 ÷ 23k
Woofer Magnet size D x d x h mm (in.) 100 x 32 x 15 (3.94 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 1,55 (3.42)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Semi-pressed paper + Mica
Dome PEI
Xmech mm (in.) 5,5 (0.22)
