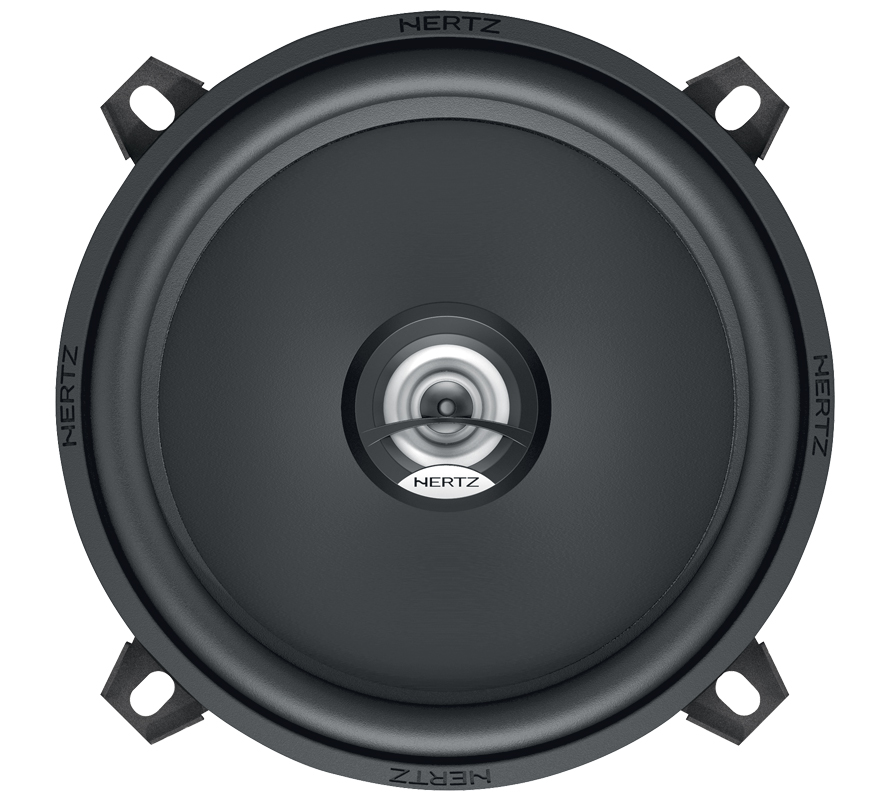

5.25 Inch SET COAX 2Way 130mm
General Features:
Power Handling – Peak: 80W
Power Handling – Continuous: 40W
Impedance: 4Ω
Frequency response: 65 ÷ 21k Hz
Sensitivity dB SPL: 93dB
Voice coil Ø mm (in.): 25mm (1.0in.)
Woofer size mm (in.): 130mm (5.0in.)
Tweeter size mm (in.): 15mm (0.6in.)
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Water-repellent pressed paper
Tweeter dome: PEI
| Brand |
|---|
THG 1.5 II
THG 1.5 II optional mesh grilles dedicated to TH 1.5 Violino can be defined with only one word: unique. They are made with finest steel without any compromise, to overcome the absolute.
Comp Tweeter
Size 38 mm (1.5″)
Power Handling 200 (Hi-Pass filtered @ 1,8kHz – 12 dB Oct.) W peak
Impedance 6 Ohm
Frequency Response 800 ÷ 26k Hz
Sensitivity 93 dB/Spl
Magnet N38 “H-grade” Neodymium
Dome Tetolon fibre
Technical Data
Comp Woofer
Size 165 mm (6.5″)
Power Handling 150 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 40 ÷ 4500 Hz
Sensitivity 87 dB/Spl
Magnet N48 “H-grade” Neodymium
Cone TPX®
