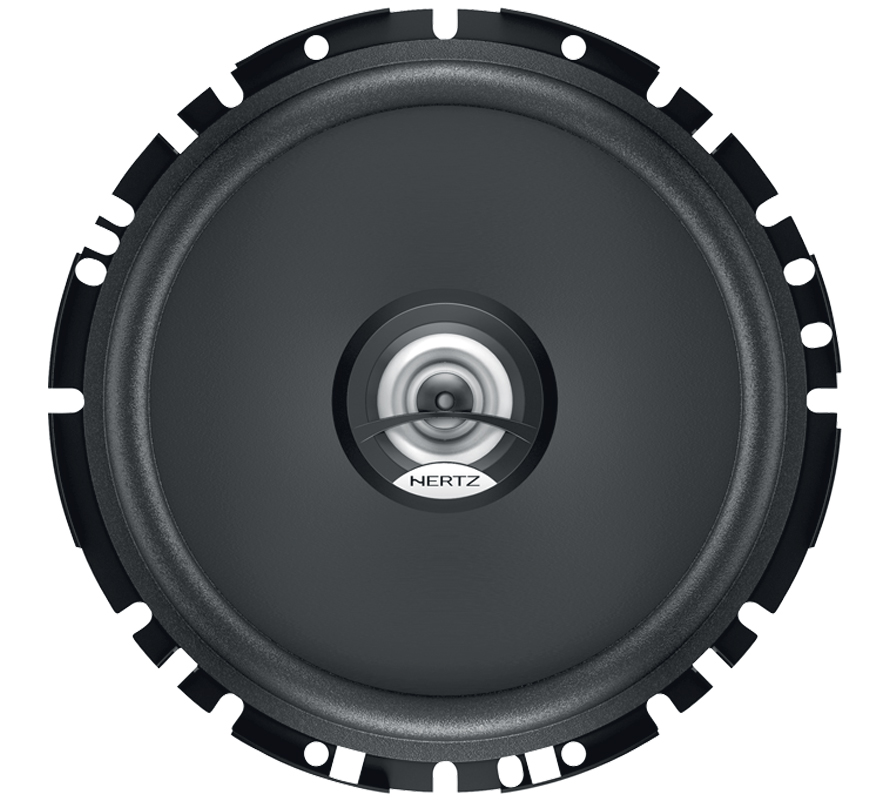

6.7 inch SET COAX 2Way
General Features:
Power Handling – Peak: 100W
Power Handling – Continuous: 50W
Impedance: 4Ω
Frequency response: 60 ÷ 21kHz
Sensitivity dB SPL: 93dB
Woofer size mm (in.): 170mm (6.7in.)
Tweeter size mm (in.): 15mm (0.6in.)
Woofer Voice Coil Ø mm (in.): 25mm (1.0in.)
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Water-repellent pressed paper
Tweeter dome: PEI
| Brand |
|---|
Technical Data
Comp Midrange
Size 70 mm (3″)
Power Handling 55 W Continuous Powerzdx
110 W Peak Power
Impedance 4 Ω
Frequency Response 110 ÷ 5700 Hz
Sensitivity 85,6 dB/Spl
Magnet N38 “H-grade” Neodymium
Cone TPX®
Pioneer AVH-1700DVD
DVD Receiver with 6.2″ Display/Siri Eyes Free/SiriusXM/Android Music Support/Pandora
Technical Data
Comp Woofer
Size 165 mm (6.5″)
Power Handling 150 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 40 ÷ 4500 Hz
Sensitivity 87 dB/Spl
Magnet N48 “H-grade” Neodymium
Cone TPX®
MONO POWER AMPLIFIER
Thesis amplifiers are born with the know-how and experience achieved with the HV venti, improved by the innovation of digital technology. The result is a perfect combination between the highest level of analog technology and the advanced features of the digital technology in one unique product. The precious synergy with Full DA HD technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.
TH uno is a single channel (mono) amplifier used to achieve maximum performance under any load; capable of delivering up to 2300 W into 1 Ohm and 200 W in the audiophile A Class mode. Specifically designed to drive systems and subwoofers with self-assured mastery.
