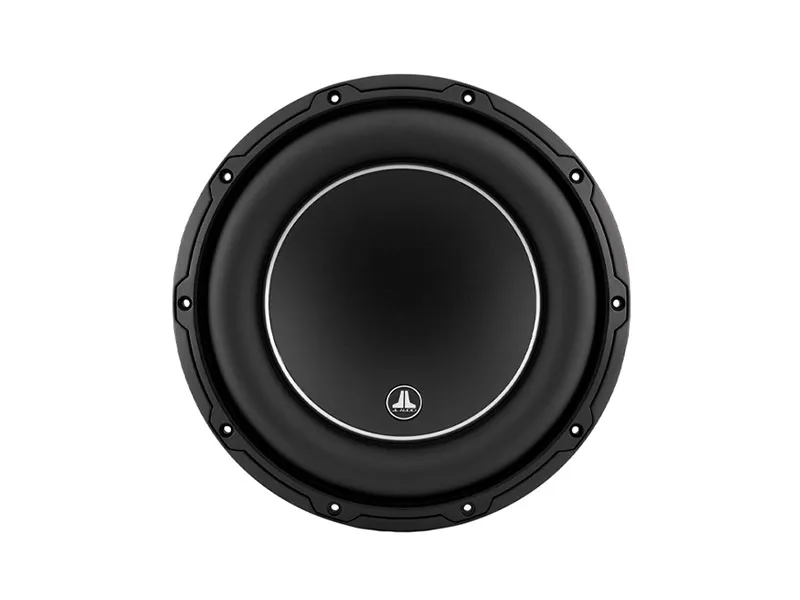

Sharing key groundbreaking technologies with the flagship W7 series, the W6v3 series subwoofers represent a giant leap forward in the quest for small-box bass perfection. Offering extra-long linear excursion capability and powerful magnetic systems, these robust 10- and 12-inch woofers deliver strong, articulate sub-bass performance characterized by low distortion levels well below audibility throughout the driver’s dynamic range.
Sharing key groundbreaking technologies with the flagship W7 series, the W6v3 series subwoofers represent a giant leap forward in the quest for small-box bass perfection. Offering extra-long linear excursion capability and powerful magnetic systems, these robust 10- and 12-inch woofers deliver strong, articulate sub-bass performance characterized by low distortion levels well below audibility throughout the driver’s dynamic range.
| Size | 10, 12 |
|---|
Size mm (in.) 300 (12)
Power Handling – Continuous W 500
Power Handling – Peak W 1000
Impedance Ohm 4
Depth mm (in.) 88 (3.46)
Voice Coil Type single
No Filter Component Subwoofers
Voice Coil Ø 38 (1.5)
Frequency Response Hz 25 – 400
Magnet size D x d x h mm (in.) 156 x 60 x 36 (6.14 x 2.36 x 1.42)
Weight of one component kg (lb.) 6,64 (14.64)
Magnet High density flux ferrite
Cone Polypropylene
Xmech mm (in.) 20 (0.79)
Size mm (in.) 250 (10)
Power Handling – Continuous W 500
Power Handling – Peak W 1000
Impedance Ohm 4
Depth mm (in.) 82,6 (3.25)
Voice Coil Type single
No Filter Component Subwoofers
Voice Coil Ø 38 (1.5)
Frequency Response Hz 25 – 400
Magnet size D x d x h mm (in.) 134 x 55 x 36 (6.28 x 2.17 x 1.42)
Weight of one component kg (lb.) 5,11 (11.27)
Magnet High density flux ferrite
Cone Polypropylene
Xmech mm (in.) 20 (0.79)
Size mm (in.) 300 (12)
Power Handling – Continuous W 600
Power Handling – Peak W 1200
Impedance Ohm 2+2
No Filter Component Subwoofers
Voice Coil Ø 65 (2,5)
Magnet size D x d x h mm (in.) 164,5 x 75 x 35 (6.48 x 2.95 x 1.38)
Weight of one component kg (lb.) 8,63 (19.03)
Magnet High density flux ferrite
Cone Pressed-pulp cone with mineral powders
Xmech mm (in.) ±26 (1.02)
