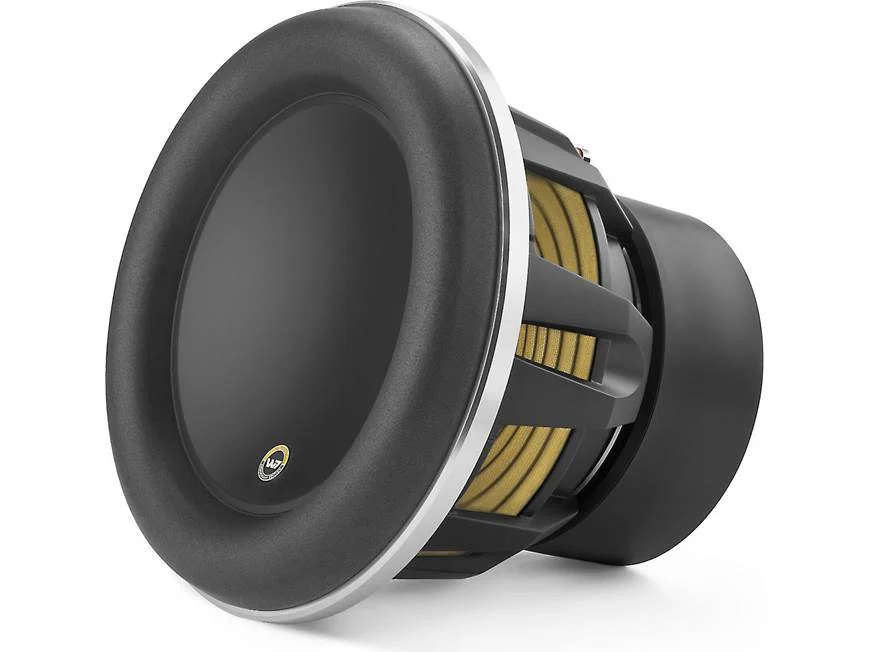

Uniquely capable of delivering extreme output, exceptional dynamics and compelling sound quality — all at the same time — the W7AE subwoofers represent the definitive reference for high-performance automotive sub-bass. Intensive audio research has optimized the speakers’ design to faithfully reproduce deep, rich bass detail with superior linearity and accuracy. As a result, eight U.S. patents have been issued for motor, suspension and assembly technologies used in the W7 platform.
Uniquely capable of delivering extreme output, exceptional dynamics and compelling sound quality — all at the same time — the W7AE subwoofers represent the definitive reference for high-performance automotive sub-bass. Intensive audio research has optimized the speakers’ design to faithfully reproduce deep, rich bass detail with superior linearity and accuracy. As a result, eight U.S. patents have been issued for motor, suspension and assembly technologies used in the W7 platform.
| Size | 8, 10, 12, 13 |
|---|
Size mm (in.) 300 (12)
Power Handling – Continuous W 600
Power Handling – Peak W 1200
Impedance Ohm 2+2
No Filter Component Subwoofers
Voice Coil Ø 65 (2,5)
Magnet size D x d x h mm (in.) 164,5 x 75 x 35 (6.48 x 2.95 x 1.38)
Weight of one component kg (lb.) 8,63 (19.03)
Magnet High density flux ferrite
Cone Pressed-pulp cone with mineral powders
Xmech mm (in.) ±26 (1.02)
Size mm (in.) 300 (12)
Power Handling – Continuous W 600
Power Handling – Peak W 1200
Impedance Ohm 4+4
No Filter Component Subwoofers
Voice Coil Ø 65 (2,5)
Magnet size D x d x h mm (in.) 165 x 75 x 35 (6.5 x 2.95 x 1.38)
Weight of one component kg (lb.) 8,63 (19.03)
Magnet High density flux ferrite
Cone Water-repellent pressed paper
Xmech mm (in.) ±27 (1.06)
