Component Tweeter
Size mm (in.) 29 (1.14)
Power Handling – Peak W 120
Power Handling – Peak Note (Hi-Pass filtered @ 2,5kHz – 12 dB Oct.)
Impedance Ohm 4
Voice Coil Ø 25 (1)
Frequency Response Hz 1.4k ÷ 22.5k
Magnet size D x d x h mm (in.) 24.5 x 6 x 3.5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.) 0.07 (0.14)
Magnet Neodymium
Dome Tetolon

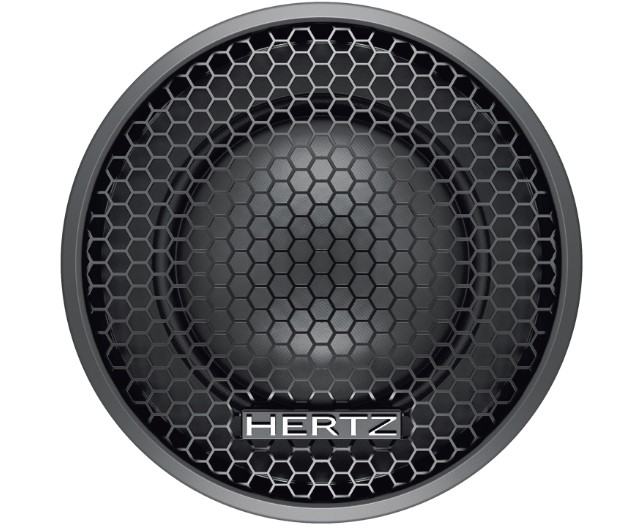

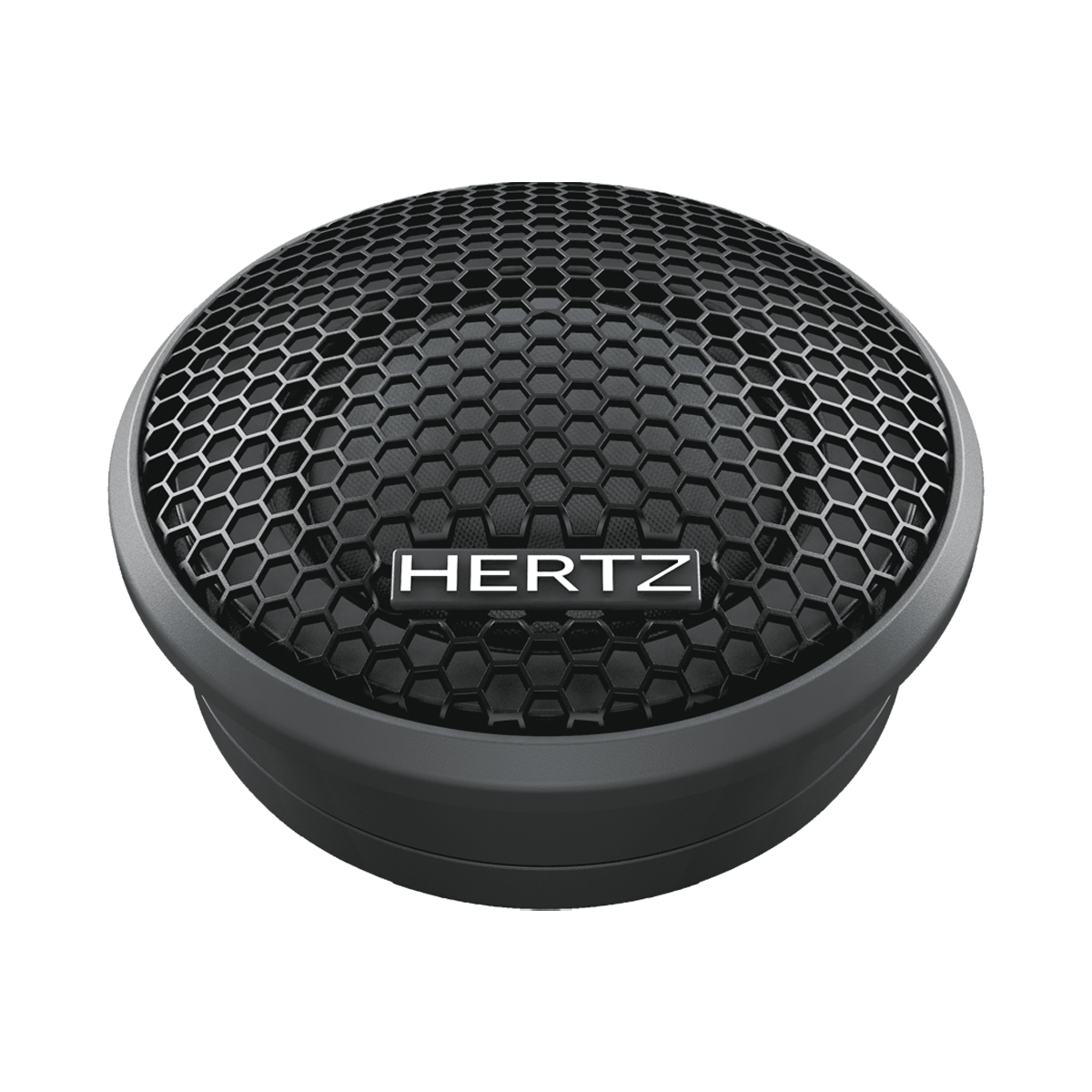

The MP 25.3 car audio tweeters, featuring Tetolon dome and 25 mm voice coil, provides a very wide, linear frequency response.
Thanks to its “Center Tuning Duct”, positioned in the center of the powerful Neodymium magnetic circuit, exchange of air between dome and rear load chamber is ensured, fine-tuning the acoustics to perfection.
The resulting very low resonance frequency is also functional for the woofer crossover point, elevating the sound stage.
Component Mid-range
Size mm (in.) 70 (3)
Power Handling – Peak W 100
Power Handling – Peak Note (Hi-Pass filtered @250Hz – 12 dB Oct.)
Impedance Ohm 4
Voice Coil Ø 20 (0.8)
Frequency Response Hz 180 ÷ 18k
Magnet size D x d x h mm (in.) 19.7 x 0 x 2 (0.78 x 0 x 0.08)
Weight of one speaker kg (lb.) 0.17 (0.37)
Magnet Neodymium
Cone Pressed-pulp cone with cotton fibers
Technical Specs
Component Tweeter
Size mm (in.) 35 (1.38)
Power Handling – Peak W 180
Impedance Ohm 4
Voice Coil Ø 28 (1.1)
Frequency Response Hz 1k ÷ 25k
Magnet size D x d x h mm (in.) 27,8 x 3,5 x 3 (1.1 x 0.14 x 0.12)
Weight of one speaker kg (lb.) 0,075 (0.16)
Magnet Neodymium
Dome Tetolon
