Component Mid-range
Size mm (in.) 70 (3)
Power Handling – Peak W 100
Power Handling – Peak Note (Hi-Pass filtered @250Hz – 12 dB Oct.)
Impedance Ohm 4
Voice Coil Ø 20 (0.8)
Frequency Response Hz 180 ÷ 18k
Magnet size D x d x h mm (in.) 19.7 x 0 x 2 (0.78 x 0 x 0.08)
Weight of one speaker kg (lb.) 0.17 (0.37)
Magnet Neodymium
Cone Pressed-pulp cone with cotton fibers
Technical Specs

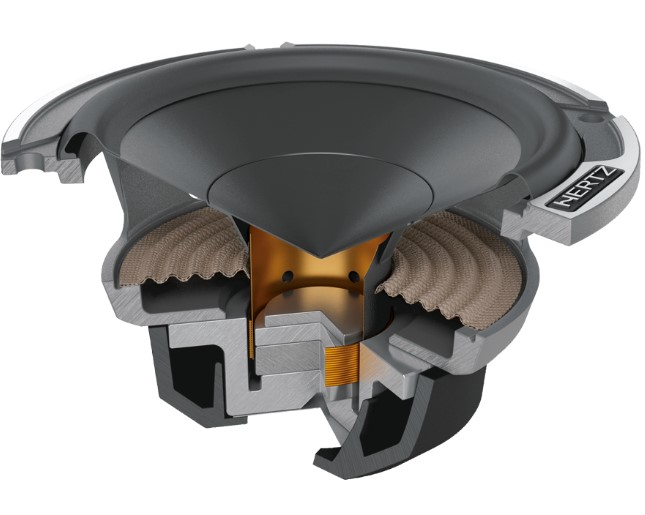

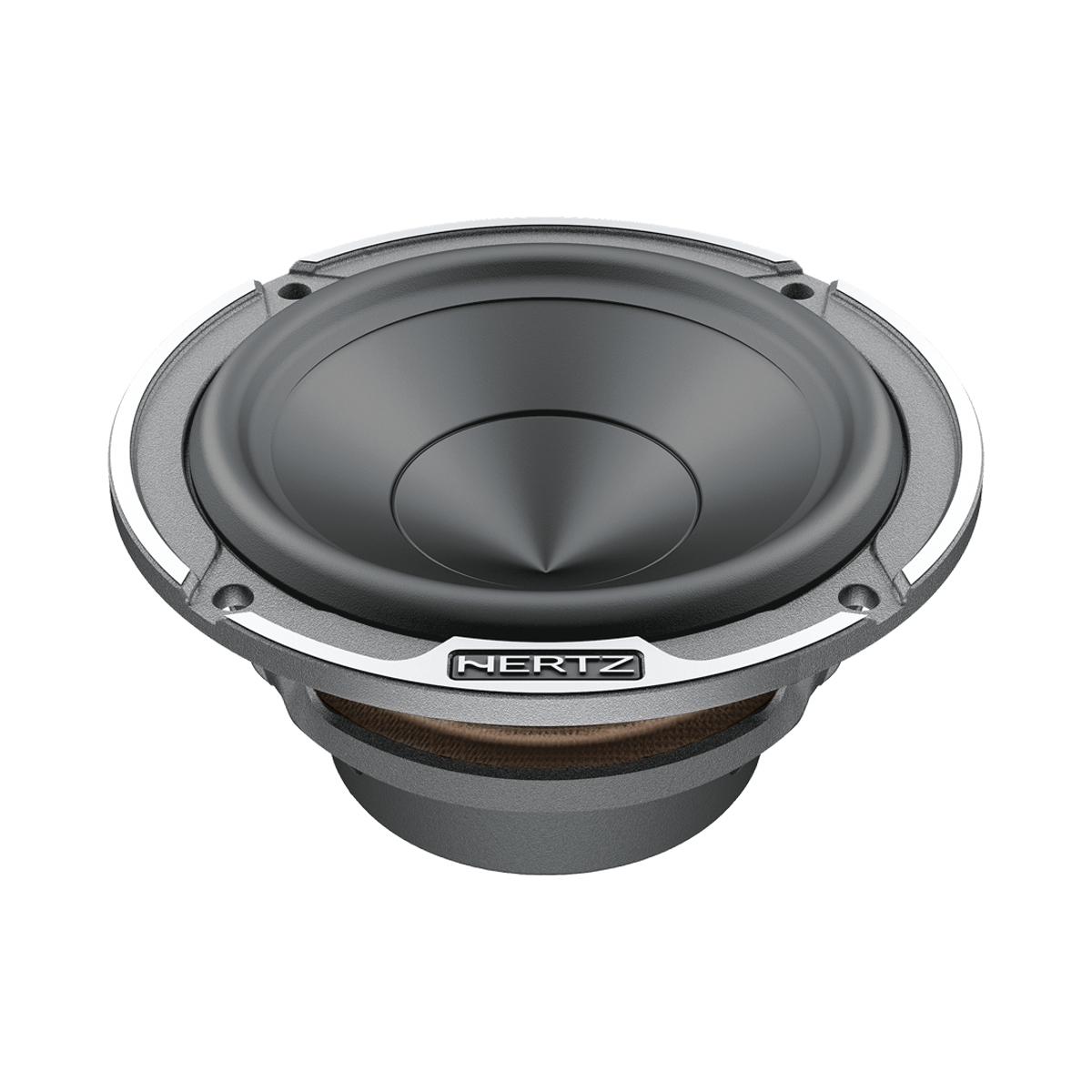

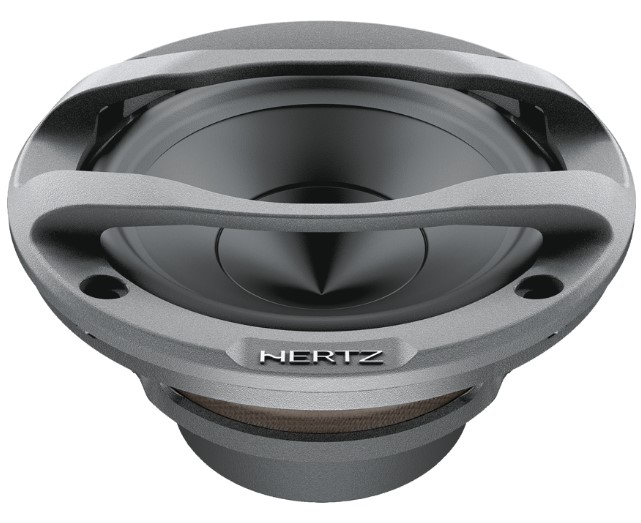

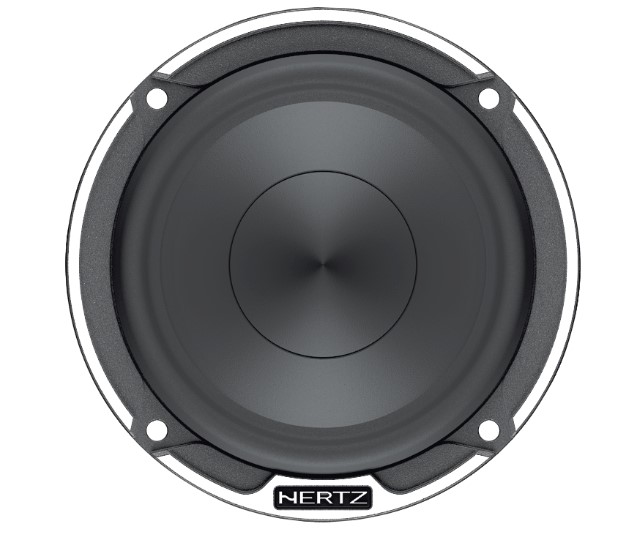

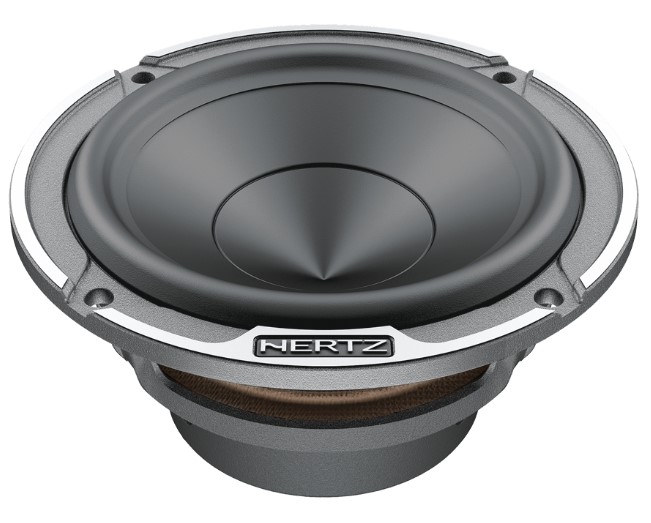

The MP 70.3 car audio mid-range speakers featuring Neodymium double magnet inside the coil produces an enthralling mid range, perfect to combine with the powerful mid-low of the MP 165P.3 woofer as well as with the detailed high range of the MP25.3 tweeter. The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range.
Component Tweeter
Size mm (in.) 35 (1.38)
Power Handling – Peak W 180
Impedance Ohm 4
Voice Coil Ø 28 (1.1)
Frequency Response Hz 1k ÷ 25k
Magnet size D x d x h mm (in.) 27,8 x 3,5 x 3 (1.1 x 0.14 x 0.12)
Weight of one speaker kg (lb.) 0,075 (0.16)
Magnet Neodymium
Dome Tetolon
Component Tweeter
Size mm (in.) 29 (1.14)
Power Handling – Peak W 120
Power Handling – Peak Note (Hi-Pass filtered @ 2,5kHz – 12 dB Oct.)
Impedance Ohm 4
Voice Coil Ø 25 (1)
Frequency Response Hz 1.4k ÷ 22.5k
Magnet size D x d x h mm (in.) 24.5 x 6 x 3.5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.) 0.07 (0.14)
Magnet Neodymium
Dome Tetolon
