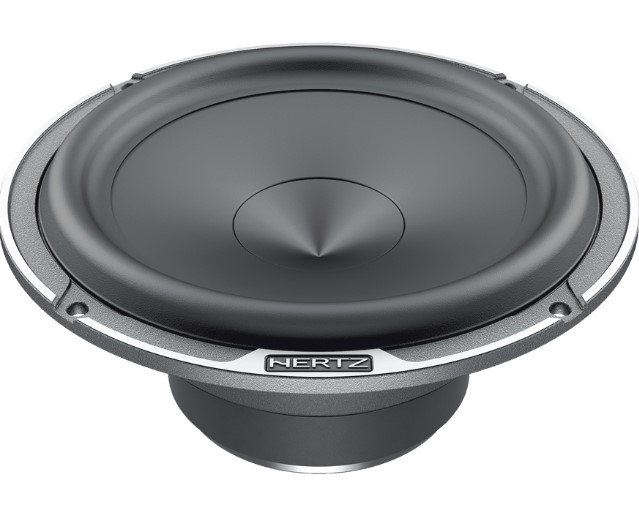

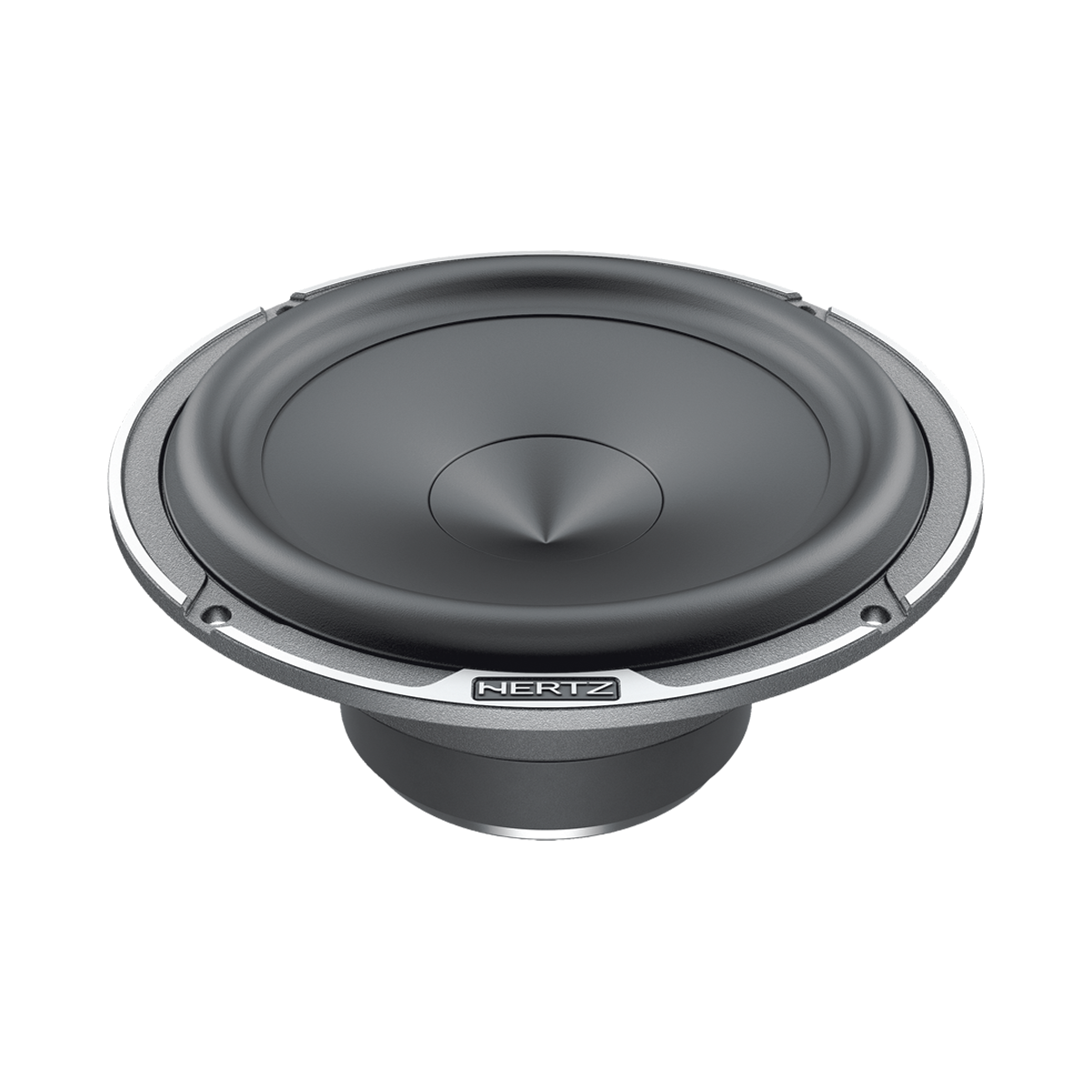

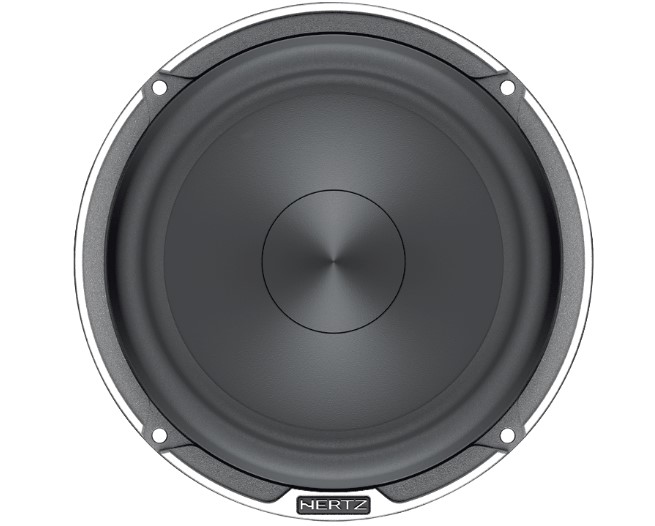

Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.
The three-way MPX 690.3 car audio coaxial, optimized for rear deck mount, features a 28 mm Tetolon tweeter with Neodymium magnet and faceplate profile maximizing the off-axis dispersion. A supertweeter strengthens the emission of very high frequencies and the basket radial venting system ensures low operating temperatures. The sound has an impressive impact and ensures perfect control, also with extensive high dynamic listening.
Data table
Size mm (in.) 165 (6.5)
Power Handling – Peak W 200
Power Handling – ContinuousW 100
Impedance Ω 3
Frequency response Hz 45 ÷ 4,5k
Sensitivity dB SPL 94
Voice coil Ø mm (in.) 25 (1)
Magnet High density flux ferrite
Cone/Dome Pressed-pulp cone with cotton fibers

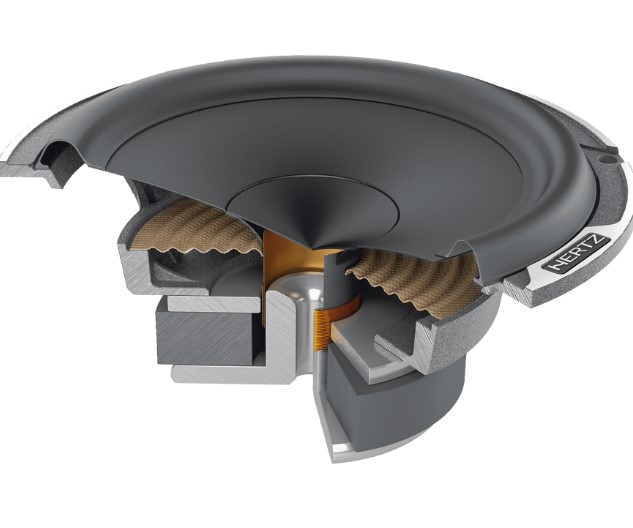

Features
1.PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
2.EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
3.“BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
4.HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
5.BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Component Woofer
Size mm (in.) 165 (6.5)
Power Handling – Continuous W 100
Power Handling – Peak W 200
Impedance Ohm 3
Voice Coil Ø 25 (1)
Frequency Response Hz 45 ÷ 4,5k
Magnet size D x d x h mm (in.) 95 x 45 x 17 (3.74 x 1.77 x 0.67)
Weight of one speaker kg (lb.) 1.2 (2.65)
Magnet High density flux ferrite
Cone Pressed-pulp cone with cotton fibers
Xmech mm (in.) ±7.5 (0.3)
Technical Specs
Brand HERTZ
Speaker Type Subwoofer, Woofer
Subwoofer Diameter 6.5 Inches
Mounting Type Car Mount
Unit Count 1.0 Count
About this item
Bundle includes: 2 Hertz Mille Pro Series MP-1653 PRO Woofers
Magnet: Ferrite
Dome/Cone: Pressed-Pulp Cone with Cotton Fibers
Impedance: 4 Ohms
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
Component Crossover
Adjustment
Tweeter 0 / +2 dB
Weight of one component – Crossover kg (lb) 0,16 (0.35)
Crossover
Midrange Low pass 5,5 kHz @ – 6 dB Oct.
Tweeter Hi pass 5,5k Hz @ – 12 dB Oct.
